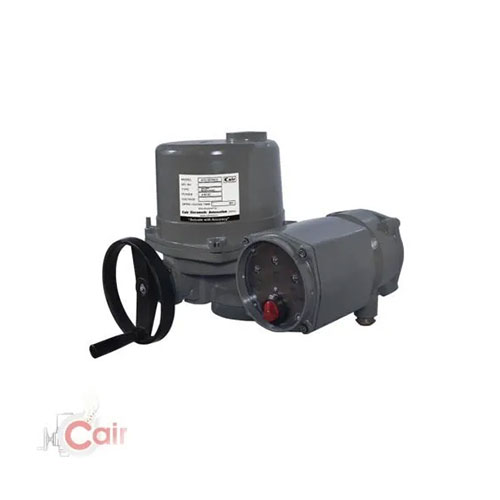

Three Phase Explosion Proof Quarter Turn Electric Actuator in Kolkata
Three Phase Explosion Proof Quarter Turn Electric Actuator in Kolkata
Three Phase Explosion Proof Quarter Turn Electric Actuator - Image 3

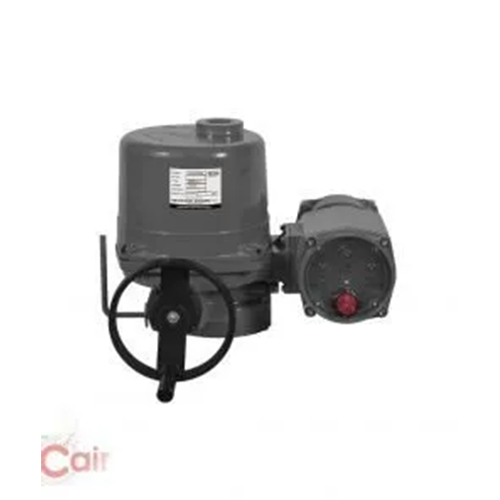

Three Phase Explosion Proof Quarter Turn Electric Actuator

Manufacturer, Dealers and Suppliers of Three Phase Explosion Proof Quarter Turn Electric Actuator in Kolkata, West Bengal, India .



KEY FEATURES :



Supply

 415 V AC (±10%), 50/60 Hz
380 V AC, 460 V AC (Available on request)

Enclosure

 Explosion Proof – CCOE/PESO Certified

Torque Range

 100 NM – 2500 NM

Manual Over-ride

 Hand Wheel Type

Integral Starter Unit

 Selector Switches : Open/Stop/Close
Selector Switches : Auto/Manual or Remote/Local
Indicator lamp        : Open/Close/Error

 Various Options

ON/OFF Type

Modulating Control (Signal Input – 4~20 mA / 2~10 V DC)
Potentiometer Feedback (4~20 mA)
Auxiliary Limit Switches (2 Units – Potential Free)
2 Wire for ON/OFF Operation.

MODEL :

MOD-ATQ-EX-10 | 20 | 60 | 100 | 150 | 200 | 250



Category:

Description

Manufacturer, Dealers and Suppliers of Three Phase Explosion Proof Quarter Turn Electric Actuator in Kolkata, West Bengal, India .

We are manufacturers, dealers, and suppliers of Three Phase Explosion Proof Quarter Turn Electric Actuator in Kolkata, West Bengal, India. We also serve clients across Durgapur, Asansol, Bardhaman, Haldia, Bihar, Ranchi, Dhanbad, Patna, Odisha, Bhubaneswar, Cuttack, Puri, Assam,  Guwahati, Manipur, Nagaland, and the entire North East region of India.



Manufacturing Standards

Actuator manufacturing standardIEC/ EN 15714-2(Electrical Actuator for Industrial Valves)Actuator Enclosure Standard- IP 67/68IS/IEC 60529-2009 (Degree of protection provided by Enclosure)Actuator motor standardIEC-60034-1 (Rotating Electrical Machines)IS-325 (Three Phase Induction Motor)Actuator Mounting StandardISO 5211

Applicable Directives

1-EC machinery Directive-2006/42/EC2-Low Voltage Directive-2006/95/EC3-EMC Directive-2004/105/EEC4-POD (Proof of Design) As per IS/IEC 15714-2 Actuator Life Cycle Test
